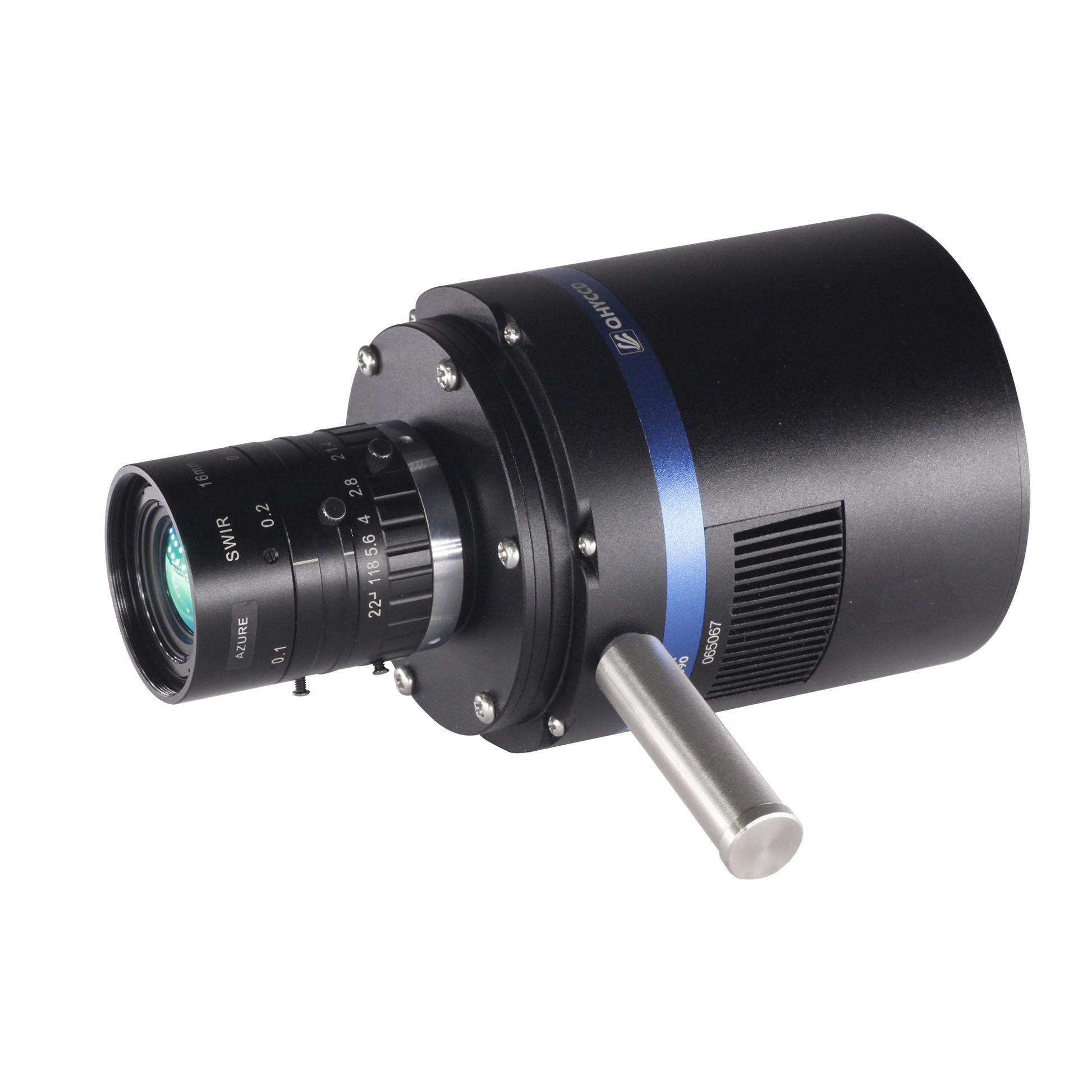

QHY990/QHY991 SWIR Camera

QHY990/QHY991 SWIR Camera

Regular price $11,800.00
Regular price $11,800.00 Sale price $11,800.00
Sale Sold out
Shipping calculated at checkout.
Please beware this product is a special order, plan on 4-6 weeks for delivery.

The QHY990/QHY991 SWIR cameras are scientific short-wavelength infrared cameras equipped with Sony IMX990/IMX991 InGaAs sensors. Let’s explore their features:

  1. Sensor and Resolution:

    • Both the QHY990 (monochrome) and QHY991 (color) cameras use the Sony IMX990/IMX991 InGaAs sensor.
    • The sensor has a square pixel array with 5μm x 5μm pixels and provides 1.31M/0.4M effective pixels.
    • These chips have a wide waveband sensitivity range from 0.4μm to 1.7μm with high sensitivity.
    • Quantum efficiency (QE) is up to 77% at 1200nm.
  2. Low Noise and High Sensitivity:

    • By using Cu-Cu interconnect technology, the sensors exhibit very low fixed pattern noise (FPN) and a low defect pixel ratio.
    • The QHY990/QHY991 cameras include 25mm filter holders, commonly used for lab applications.
    • The SWIR filter can be easily installed on the camera with a 17.5mm C-mount back focal length (B.F.L.).
  3. Cooling Options:

    • The QHY990Pro II version offers both air cooling (achieving -35°C below ambient) and liquid cooling (customization).
    • The liquid cooling version can achieve temperatures as low as -45°C below ambient with normal temperature liquid and even -60°C to -80°C below ambient with cold liquid.
  4. Applications:

    • SWIR Astronomy Imaging and Photometry
    • Daytime Star Observing
    • Optical Communication
    • Laser and Optic Labs

For detailed specifications and pricing information, you can visit the QHYCCD website.

. Its high sensitivity and cooling options make it a valuable tool for researchers and observatories

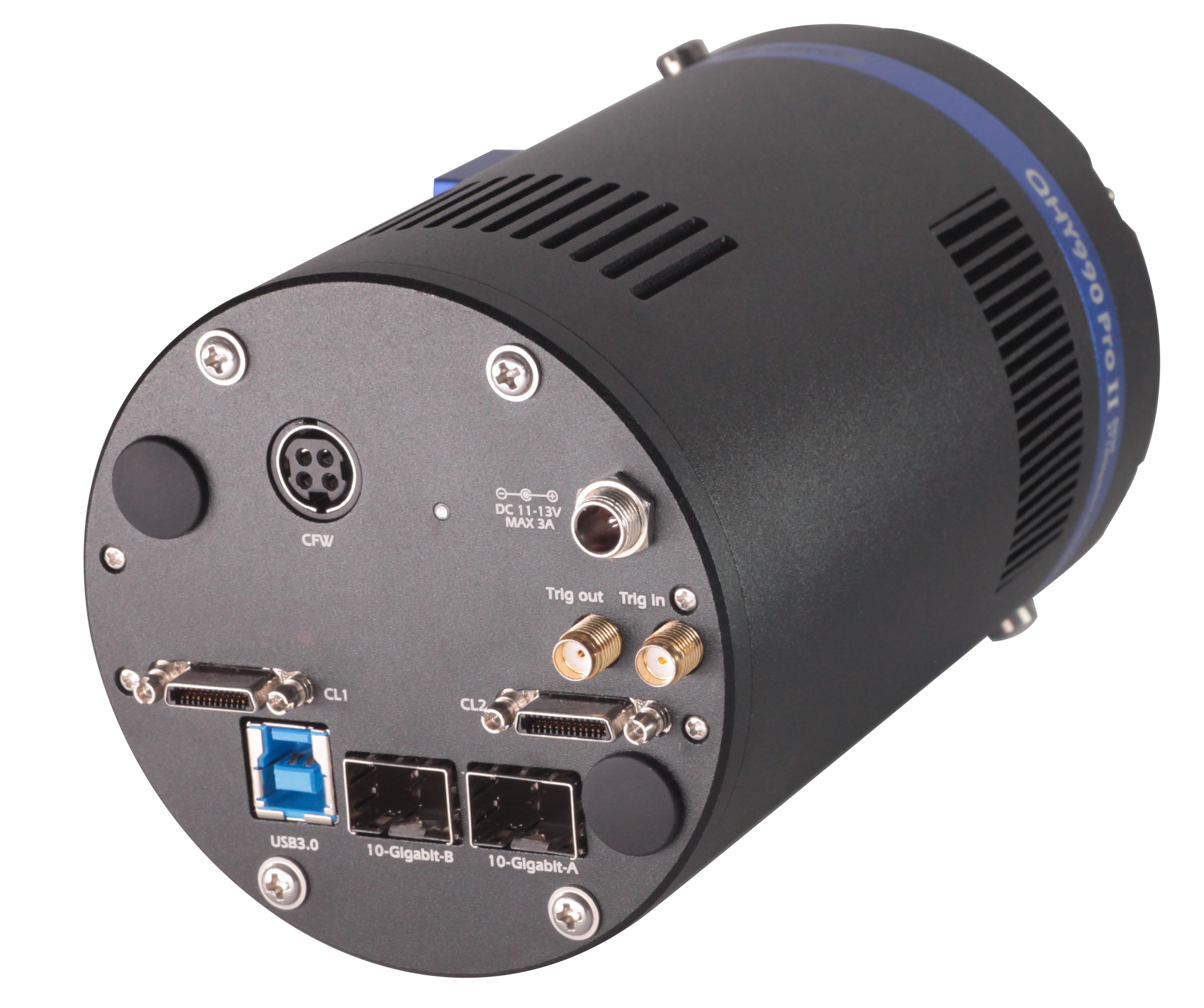

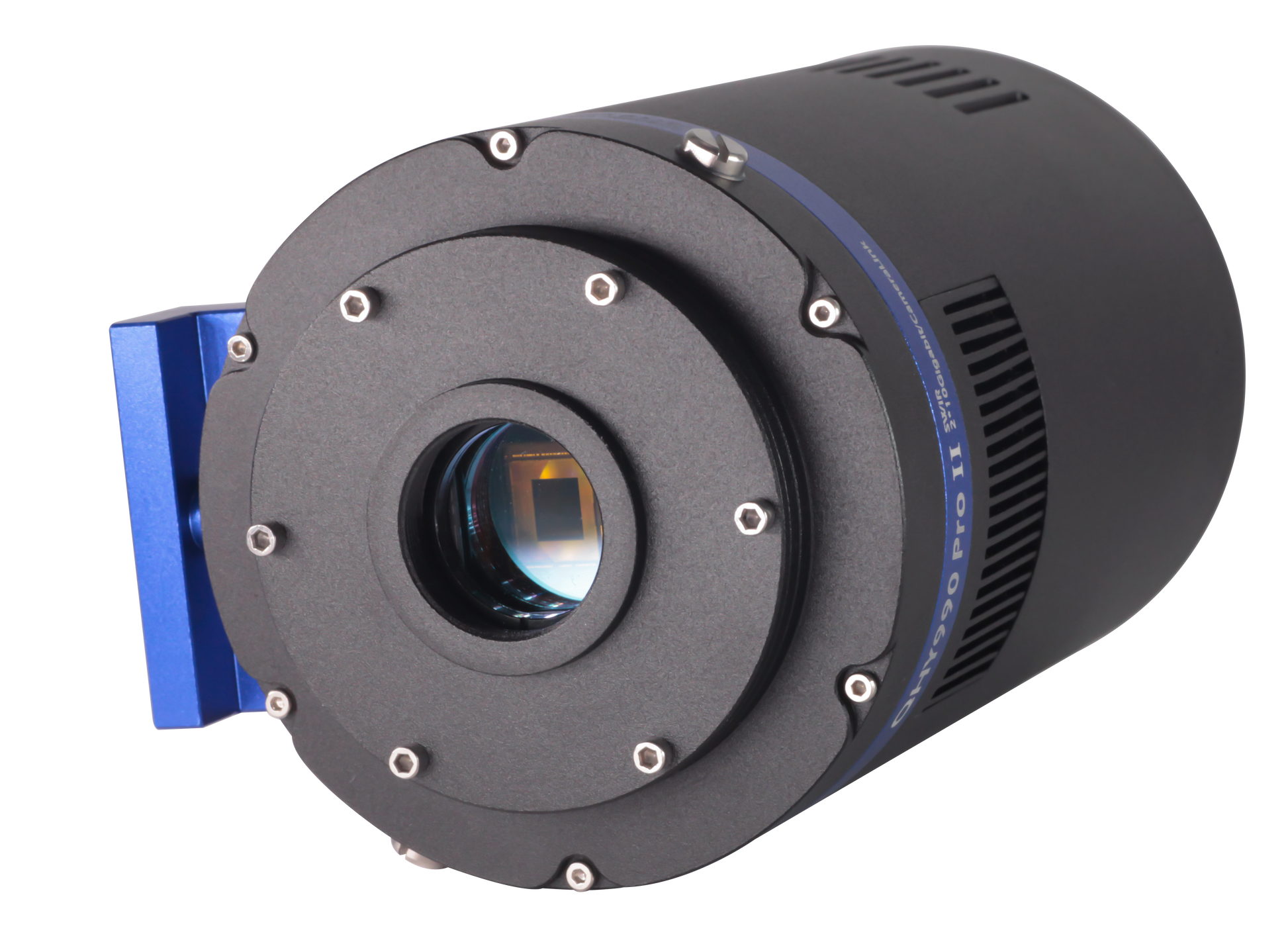

QHY990Pro II have both air cooling and liquid cooling version (customization).  The air cooling can get the -35C below ambient. The liquid cooling version can get -45C below ambient with normal temperature liquid and can get -60 to -80C below ambient with cold liquid.  Typically, the InGaAs sensor has a high dark current than Silicon-based material. If you need long exposure (eg. >5 sec), we recommend the liquid cooling version.

Specifications
Model QHY990 QHY990Pro II QHY991
CMOS Sensor Sony IMX990 Sony IMX990 Sony IMX991
FPA Material InGaAs InGaAs InGaAs
Pixel Size 5.0um*5.0um 5.0um*5.0um 5.0um*5.0um
Total Pixels(includes optic black pixels) 1392*1052 1392*1052 752*520
Effective Pixel Area 1296*1032 1296*1032 656*520
Effective Pixels 1.3 Megapixels 1.3 Megapixels 0.4 Megapixels
Effective Image Area 1/2 inch 1/2 inch 1/4 inch
AD Sample Depth 12-bit A/D
Shutter Type Global Shutter
QE 77% @ 1200nm
Full Well Typical 120ke-
Readout Noise The measured data is after Bias Frame FPN calibration Typical 150 e- at lowest gain
Typical 50e at a middle gain
Typical 20e- at high gain
Frame Rate 66FPS@Full Resolution 12bit137FPS@480Line 12bit
256FPS@240Line 12bit
518FPS@100Line 12bit
925FPS@40Line 12bit
1150FPS@20Line 12bit
USB3.0
66FPS@Full Resolution 12bit137FPS@480Line 12bit
256FPS@240Line 12bit
518FPS@100Line 12bit
925FPS@40Line 12bit
1150FPS@20Line 12bit2*10G
TBACameraLink
TBA
133FPS @ Full resolution 12bit254FPS @ 240Line 12bit
510FPS @ 100Line 12bit
700FPS @40Line 12bit
830FPS @20Line 12bit
Trig Function One Hardware Trig-In Socket (RCA type).Opto-isolated
Computer Interface USB3.0 USB3.0
2*10Gigabit Fiber Optic Interfaces
2*CameraLink Interfaces
USB3.0
Lens Interface C-Mount
Telescope Interface 1.25inch Adapter
Basic Interface Flange with 6-M3 screw holes
25mm Filter Adapter Support D=25mm and D=25.4mm filter
Back Focal Length C_Mount,1.25inch adapter
17.5mm with 25mm filter adapter, 14.5mm without filter adapter
Basic Interface
12.5mm
Liquid Cooling Supported (Customization)
Cooling System Dual Stage TE Cooler-Air Cooling version
Maximum -35C with ambient(Test temperature +20°)
Dual Stage TE Cooler-Air Cooling version
Maximum -35C with ambient(Test temperature +20°)Liquid Cooling version
Maximum -45C with ambient by using normal water
-60C to -80C with ambient by using cold liquid
Dual Stage TE Cooler-Air Cooling version
Maximum -35C with ambient(Test temperature +20°)
Recommended flow rates for water-cooled versions 1.6ml/s
Body length 92.5mm 92.5mm
Weight About 520g About 1000g About 520g
